IP65 IK08 CE approved linkable led batten linear luminaire
waterproof light led linear suspended led tri-proof light

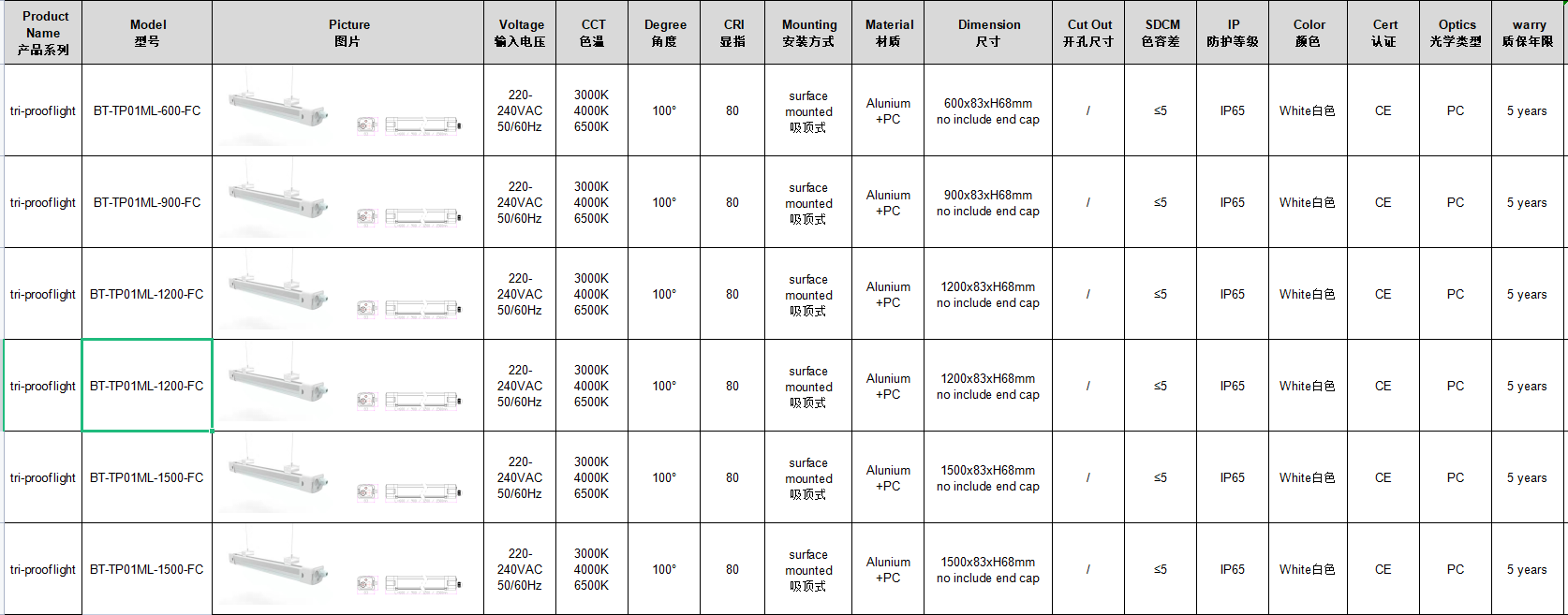

| manufacturers | milleds lighting |

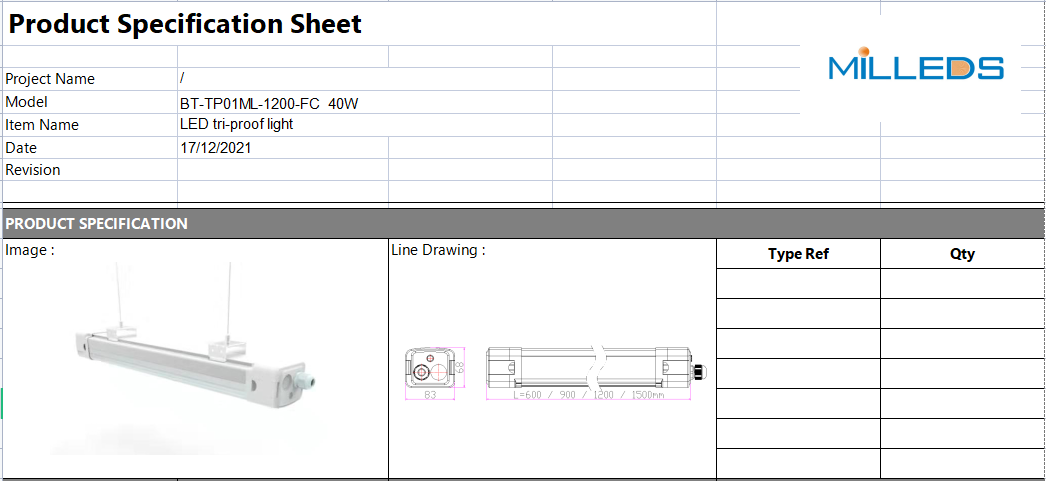

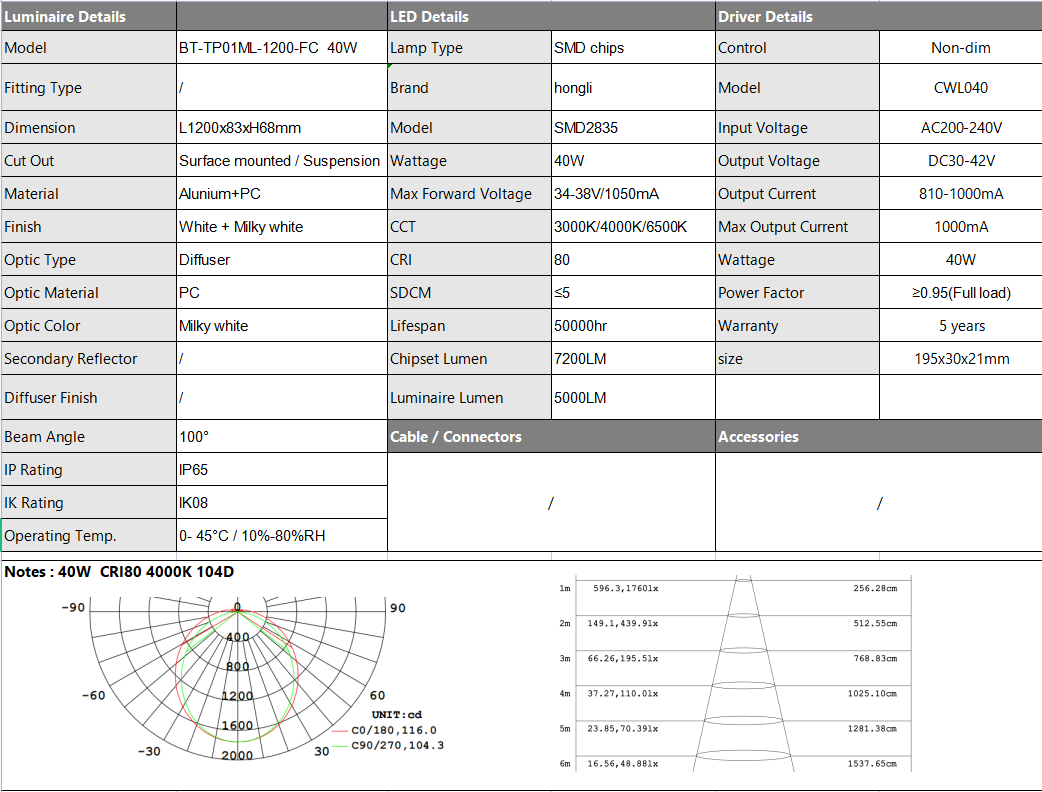

| model | BT-TP01ML-1200-FC |
| Size | L1200x83xH68mm |
| Cutout: | Surface mounted / Suspension |
| watts | 40W |
| CCT | 3000K/4000K/6500K |
Three anti-lamp features
※ The shell is made of optical pole-PC material with dual-color
extrusion process, with excellent weather resistance.
※ Plug adopts innovative buckle installation mode, no need to use
tools to screw, convenient construction site operation.
※ The lamp plug is equipped with breathing apparatus, which makes
the lamp breathable, dry and fogless, and reduces the heat
dissipation temperature by 3-5 degrees compared with the
traditional plug.
※ Waterproof lamp IP65; The lamps are waterproof, dustproof and
anticorrosive. (IK10/09)
※ The transparent part of the lampshade adopts the lighting optical
principle to optimize the design, the light is uniform, soft, no
glare.
※ Installation method: according to the needs of the ceiling,
ceiling and other installation methods.
"The so-called thermal conductivity coefficient refers to the
meaning of heat conduction, the thermal conductivity of aluminum
W/(m·K):237 metals of gold,.Thermal conductivity, also known as
"thermal conductivity".A measure of a substance's ability to
conduct heat.The symbol is λ or K.Refers to the heat transfer
through a unit horizontal cross-sectional area per unit time when
the vertical downward gradient of temperature is 1℃/m.Thermal
conductivity definition: inside the object perpendicular to the
direction of thermal conductivity take two meters apart, area of 1
square..."
milleds lighting use CNC Aluminum heat conductivity coefficient
150-200.0W/(m·K),It can quickly conduct the heat out, so as to
protect the lamp LED lamp bead temperature and reduce the light
decline value of the lamp.
In addition, milleds lighting use the brand of Dow Corning thermal
silicone grease, good thermal conductivity and stable silicone oil
characteristics, further guarantee the life of LED downlight beads
and control the value of light decline .
So we can control up to LM80 and LM70 is achievable .
milleds lighting production LED Downlight , LED spotlight , LED
Track light , LED ceilling light , LED pendant lamp , LED Hotel
spotlight , LED Grille Downlight , LED Surface mounted downlight ,
LED Hotel spotlight .and has 10 years of design, development and
production experience .
We can also accept OEM/ ODM orders for customized lamps .
has extensive experience in engineering projects in the UK, Dubai,
Singapore and Malaysia.
Looking forward to working with you to explore new markets and
projects .
